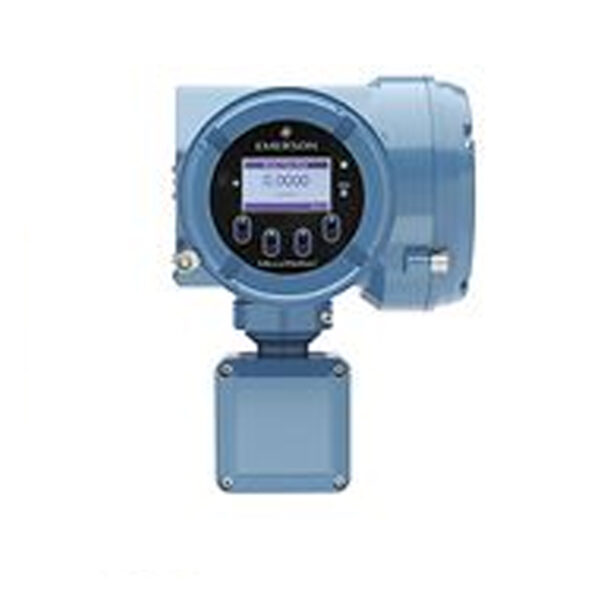

Micro Motion 5700 Field-Mount Transmitter: Complete Guide, Features & Benefits

Introduction

The Micro Motion 5700 Field-Mount Transmitter is a state-of-the-art flow transmitter designed to deliver accurate flow measurement, advanced process diagnostics, and real-time insights across multiple industries. Engineered by Emerson, it provides operators with unmatched reliability, easy integration, and enhanced control for complex industrial processes. Whether in oil and gas, chemical processing, food and beverage, or water treatment, the 5700 transmitter ensures precision, efficiency, and operational safety.

What is the Micro Motion 5700 Field-Mount Transmitter?

The Micro Motion 5700 is a next-generation transmitter used with Coriolis flow meters to measure mass flow, volume, density, and temperature with exceptional accuracy. It is designed for field-mount applications, meaning it can be installed directly in harsh environments without the need for a protected control room.

This transmitter helps industries reduce downtime, increase productivity, and optimize resources by providing advanced data analytics and process control capabilities.

Key Features of the Micro Motion 5700 Transmitter

1. Advanced Measurement Capabilities

• Delivers direct mass flow measurement with high precision.

• Supports multi-variable outputs: flow, density, temperature, and volume.

• Enables real-time diagnostics for enhanced reliability.

2. Intuitive User Interface

• Full-color graphical display for easy monitoring.

• Simple menu navigation reduces training and setup time.

• Remote access via Ethernet, HART, and Modbus communication.

3. Robust Field-Mount Design

• Built for harsh industrial environments.

• Offers corrosion-resistant housing and long service life.

• Field-mount configuration eliminates the need for additional enclosures.

4. Smart Process Diagnostics

• Emerson’s Smart Meter Verification (SMV) technology for in-situ meter health checks.

• Real-time alerts on process upsets or abnormal conditions.

• Minimizes maintenance costs and prevents unscheduled downtime.

Benefits of Using Micro Motion 5700 Transmitter

• Unmatched Accuracy: Reliable flow measurement ensures compliance and efficiency.

• Operational Safety: Built-in diagnostics reduce risks during operations.

• Lower Total Cost of Ownership: Reduces calibration needs and maintenance efforts.

• Easy Integration: Compatible with multiple communication protocols for seamless system connectivity.

• Scalability: Suitable for both small-scale and large-scale industrial operations.

Applications Across Industries

Oil & Gas

• Custody transfer

• Refining processes

• LNG and petrochemical operations

Food & Beverage

• Accurate batching and blending

• Quality control through density measurement

Chemical Industry

• Process monitoring

• Corrosive material handling

Water & Wastewater

• Flow monitoring in treatment plants

• Compliance with regulatory standards

Technical Specifications (Overview)

• Mounting: Field-mount, direct installation in process environments

• Communication Protocols: Ethernet, HART, Modbus, Profibus

• Measurement Outputs: Mass flow, volume, density, temperature

• Diagnostics: Smart Meter Verification (SMV)

• Display: Full-color graphical display

• Enclosure Rating: IP66/67, designed for harsh conditions

Why Choose the Micro Motion 5700?

The Micro Motion 5700 Field-Mount Transmitter stands out because it combines advanced Coriolis measurement technology, user-friendly interface, and real-time diagnostics into a single rugged unit. It not only delivers measurement accuracy but also enhances plant safety, compliance, and profitability.

For industries looking to maximize uptime and improve process performance, the 5700 is a long-term, future-proof investment.

FAQs about Micro Motion 5700 Field-Mount Transmitter

Q1: What makes the Micro Motion 5700 different from other transmitters?
The 5700 offers real-time diagnostics, a graphical display, and Smart Meter Verification, setting it apart from traditional flow transmitters.

Q2: Can the Micro Motion 5700 be used in hazardous environments?
Yes. It is designed for harsh industrial and hazardous conditions, with rugged housing and IP-rated protection.

Q3: Does the 5700 support remote monitoring?
Absolutely. It supports Ethernet, HART, Modbus, and Profibus, allowing seamless integration and remote data access.

Q4: Which industries benefit most from this transmitter?
Industries such as oil & gas, chemicals, food & beverage, and water treatment gain maximum value from its precision and reliability.

Q5: How does Smart Meter Verification (SMV) help?
SMV performs automatic, in-situ health checks of the meter without removing it from service, reducing downtime and maintenance costs.
